For the proper operation of the garden irrigation system, a water source with the following parameters is required: dynamic pressure of 3.0 bar, water flow rate: 0.8 m³/h.
If you are unsure how to measure water volume and dynamic pressure, please refer to the #AquaSet video. If you need measuring tools, take a look at our available products.

To make the installation of the irrigation system easier, we provide a detailed instruction manual with QR codes. These codes give you quick access to video materials and additional assembly tips, guiding you step-by-step through the entire installation process. This offers you comprehensive support to ensure a smooth and trouble-free installation.

The garden irrigation system includes all the necessary components for a pop-up sprinkler system for the lawn as well as a drip irrigation system for hedges, flower beds, or vegetable beds.

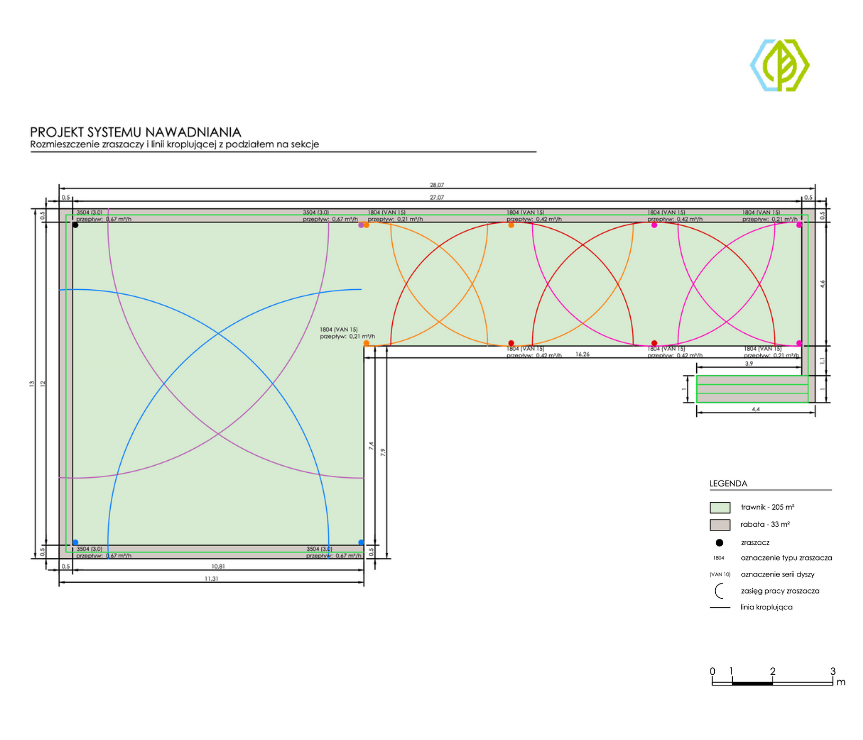

Provided that the water source parameters are met, the garden irrigation system is divided into 5 sections. Each section is independently controlled by an internal Hunter irrigation controller. The controller sends signals to the electric valves, which are activated one after another according to the set schedule.

The irrigation project includes the use of Hunter Pro-Spray PROS-04 pop-up sprinklers and Rain Bird 3504 sprinklers, which are optimally positioned to ensure even watering of the lawn, with a total of twelve sprinklers.

The plant irrigation system in the garden is based on drip irrigation using pressure-compensated drip lines, with drippers placed every 0.33 m and adjusted to the positions of the plants.

The automatic garden irrigation system includes the following components:

• Hunter X-CORE 6-Zone Indoor Irrigation Controller: This controller automates the entire irrigation process. The user-friendly device is designed for indoor installation where it is protected from weather conditions. It requires a 230V power outlet. The controller is connected to the electric valves via a signal cable, through which a 24V (safe voltage) signal is sent to the solenoids of the valves to activate individual sections of the irrigation system.

• Rain Bird 100-HV Electric Valves: The electric valves are installed in a special valve box that protects them from mechanical damage and weather conditions. The valve box is equipped with a PVC bottom. Typically, the valve box is installed near the water source.

Information for the Buyer

The irrigation system has been tailored to the specified dimensions, the shape of the garden, and parameters such as the water source and dynamic pressure to ensure optimal efficiency and functionality.
If the shape, size, or parameters of your garden differ from those described, we can create a custom solution for your specific needs. Please check our category “Custom Irrigation Projects” and order a plan that is perfectly adapted to your space.

If you have any questions or need further information, feel free to contact us!

When purchasing a self-assembling irrigation set, you will receive:

• A complete set of assembly materials

• A detailed irrigation plan

• User manuals for each product

• A plan for section division

• A selection of suitable nozzles for the sprinklers
