For the proper operation of the garden irrigation system, a water source with the following parameters is required: dynamic pressure of 3.0 bar, water flow rate: 0.8 m³/h.
If you are unsure how to check the water volume and dynamic pressure, please watch the #AquaSet video. If you need measuring tools, check out our product offerings.

To make the installation of the irrigation system easier, we provide a detailed instruction manual with QR codes. These give you quick access to video materials and additional assembly tips that guide you step-by-step through the entire installation process. This provides comprehensive support from our side to ensure a smooth and hassle-free installation.

The garden irrigation system includes all the necessary components for a pop-up sprinkler system for the lawn, as well as a drip irrigation system for hedges, flower beds, or vegetable beds.

If the water source parameters are met, the irrigation system is divided into 2 sections. Each section is independently activated by an internal Hunter irrigation controller. The controller sends signals to the electric valves, which are activated sequentially according to the programmed schedule.

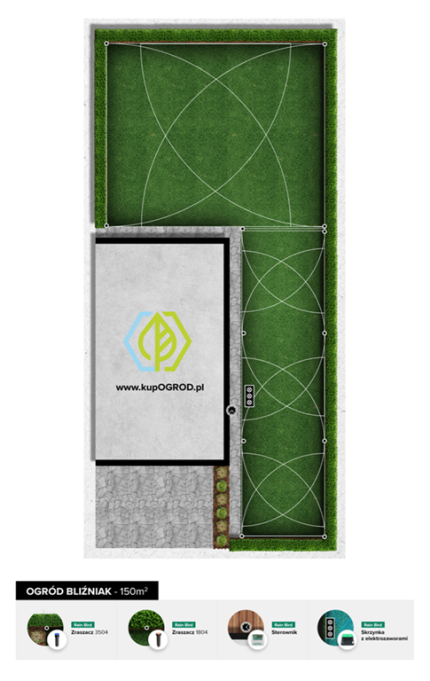

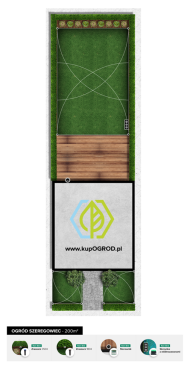

The irrigation project includes the use of Hunter Pro-Spray PROS-04 pop-up sprinklers, which are optimally positioned to ensure even lawn watering, with a total of fourteen of these sprinklers.

The plant irrigation system is based on drip irrigation with pressure-compensated drip lines, with drippers spaced every 0.33 m and positioned according to the plants.

The automatic garden irrigation system consists of the following components:

• Hunter X-CORE 4-Zone Indoor Irrigation Controller: This controller automates the entire irrigation process. The user-friendly device is intended for indoor installation, protected from weather conditions. It requires a 230V power outlet. The controller is connected to the electric valves via a signal cable that sends a 24V (safe voltage) signal to the solenoids of the valves to activate individual sections of the irrigation system.

• Rain Bird 100-HV Electric Valves: The electric valves are installed in a special valve box, which protects them from mechanical damage and weather conditions. The valve box includes a PVC base. Typically, the valve box is installed near the water source.

Information for the Buyer

The irrigation system has been tailored to the specified dimensions, garden shape, and parameters such as the water source and dynamic pressure to ensure optimal efficiency and functionality.
If the shape, size, or parameters of your garden differ from those described, we can create a custom solution for your specific needs. Please check our category “Custom Irrigation Projects” and order a project that is perfectly adapted to your space.

If you have any questions or need further information, we are happy to help!

When purchasing a self-assembling irrigation set, you will receive:

• A complete set of assembly materials

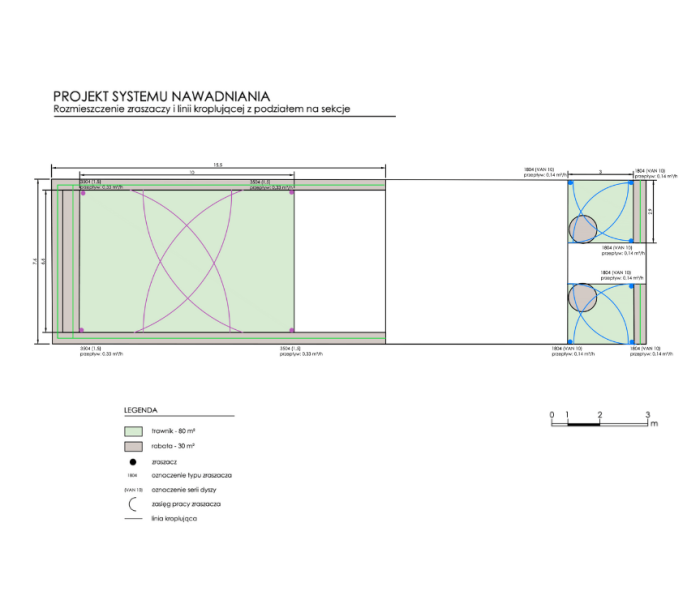

• A detailed irrigation plan

• User manuals for each product

• A plan for section division

• A selection of suitable nozzles for the sprinklers
