For the proper operation of the garden irrigation system, a water source with the following parameters is required: dynamic pressure of 3.0 bar, water flow: 0.6 m³/h.
If you are unsure how to check the water volume and dynamic pressure, watch the #AquaSet video. If you need measuring tools, take a look at our selection.

To make the installation of the irrigation system easier, we provide you with a detailed manual including QR codes. These give you quick access to video tutorials and additional assembly tips that guide you step-by-step through the entire installation process. This offers comprehensive support from our side to ensure a smooth and hassle-free installation.

The garden irrigation system includes all necessary components for:

• A pop-up sprinkler system for the lawn

• A drip irrigation system for hedges, flower beds, or vegetable gardens

If the water source parameters are met, the system is divided into three irrigation zones.
Each zone is independently activated by an internal Hunter irrigation controller. The controller sends signals to electric valves, which are activated one after the other according to the pre-set schedule.

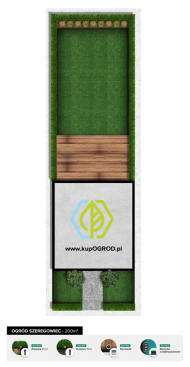

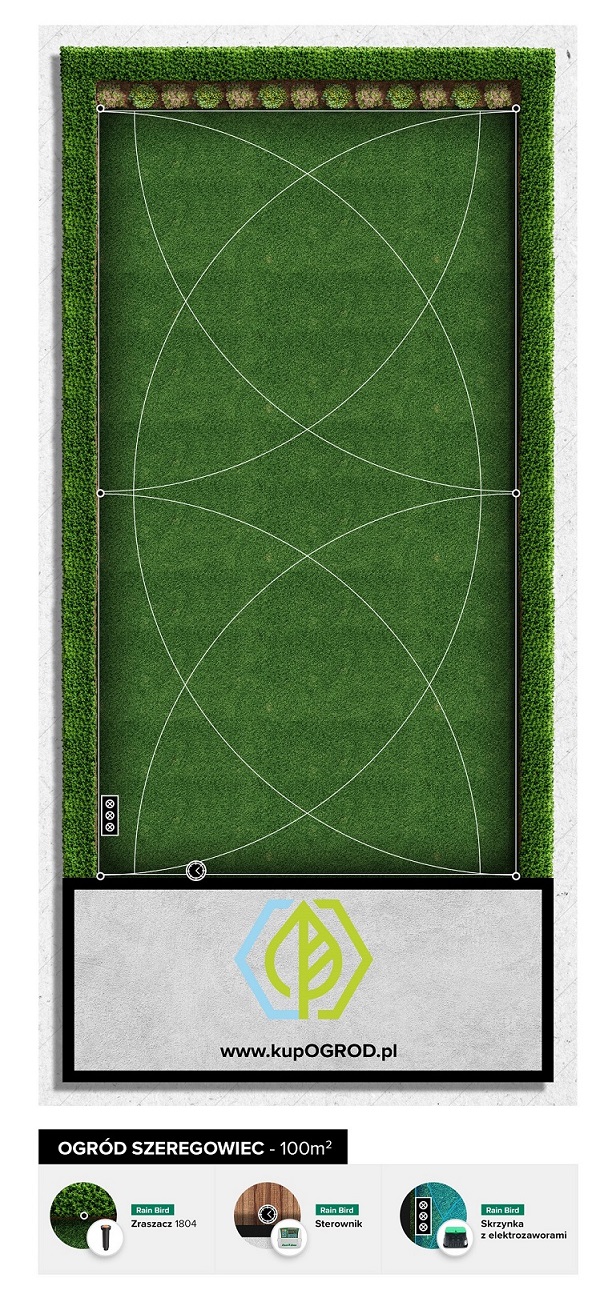

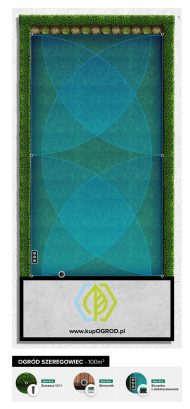

The irrigation plan includes the use of Hunter Pro-Spray PROS-04 pop-up sprinklers, optimally positioned to ensure even watering of the lawn, with a total of six sprinklers.

The plant irrigation system in the garden is based on drip irrigation using pressure-compensated drip lines, with drippers spaced every 0.33 meters, positioned and adjusted according to the location of the plants.

The automatic garden irrigation system consists of the following components:

• Hunter X-CORE 4-Zone Indoor Irrigation Controller
  This controller automates the entire irrigation process. The user-friendly device is intended for indoor installation, where it is protected from the weather.
  A 230 V power outlet is required to operate the controller. The controller is connected to the electric valves via a signal cable, which transmits a 24 V signal (safe voltage) to the solenoids to activate the individual zones of the irrigation system.

• Rain Bird 100-HV Electric Valves
  The electric valves are installed in a special valve box, which protects them from mechanical damage and environmental influences.
  The valve box is equipped with a PVC bottom and is usually installed near the water source.

Information for the Buyer

The irrigation system has been adapted to the specified dimensions, garden shape, and parameters such as water source and dynamic pressure to ensure optimal efficiency and functionality.
If the shape, size, or parameters of your garden differ from those described, we can offer a customized solution tailored to your needs.
Visit our “Custom Irrigation Projects” category and order a project perfectly suited to your space.

If you have any questions or need more information, we are happy to help!

When purchasing a DIY irrigation kit, you will receive:

• A complete set of assembly materials

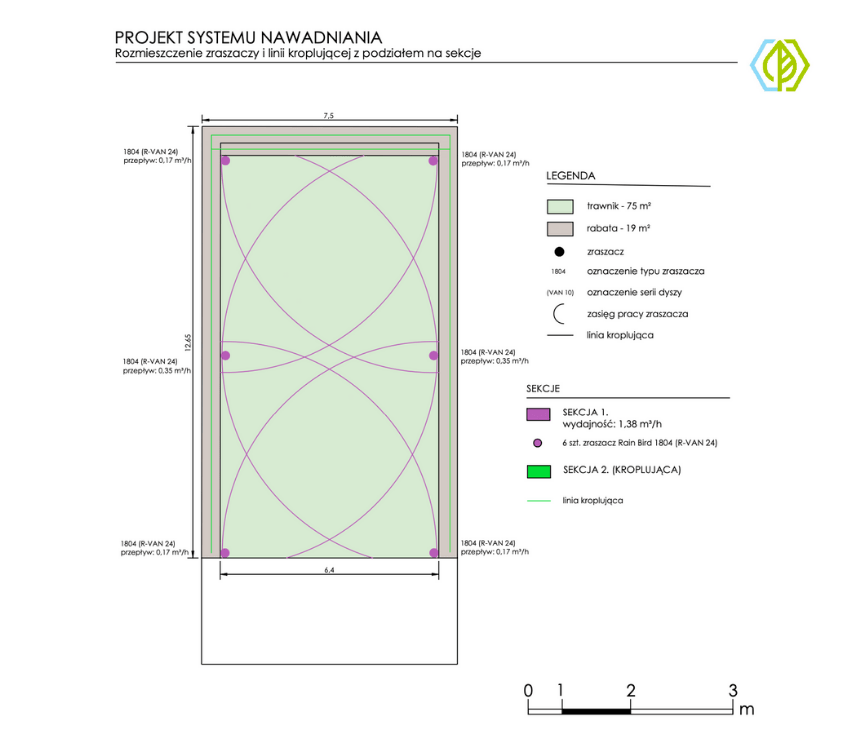

• A detailed irrigation plan

• Product-specific user manuals

• A layout plan for the irrigation zones

• A selection of suitable nozzles for the sprinklers
